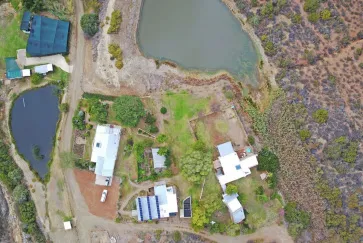

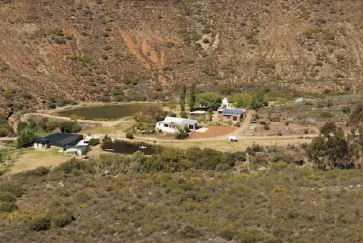

Two Dam Sustainable, a trout farm near Montagu, Western Cape, is one of the first four pilot projects to have been certified net zero in South Africa in October 2017. As the sustainability consultant on the project, Ecolution worked closely with the farm as the sustainability project manager, and were appointed as the Commissioning authority that certified the farm net zero under the GBCSA’s Green Star SA Net Zero Carbon certification.

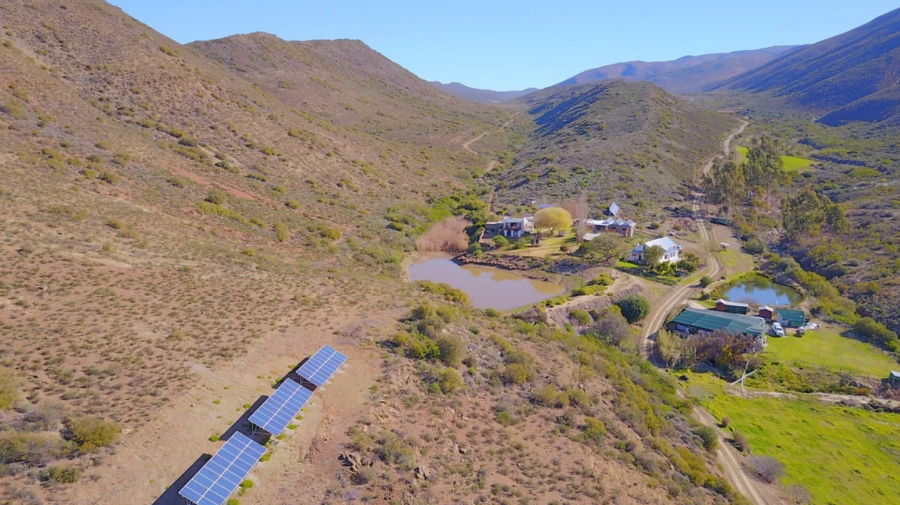

Operating as an off-grid, responsibly operated trout farm, this muti-award winning farm produces ethically made trout products and runs almost entirely off of renewable energy. The majority of the energy used for the farm is provided by a 31 kW photovoltaic panel array and a ‘high pressure, low water volume’ micro-hydro turbine that generates up to 1kW of continuous electricity.

The farm is home to a hyper-efficient Recirculating Aquaculture System (RAS) – which is the first of its kind in Africa. The Rainbow Trout RAS operates sustainably by being an energy efficient low head recirculating system which requires comparatively low electricity as opposed to conventional high pressure RAS or high volume raceway cultures, which require and often pollute huge volumes of fresh water.

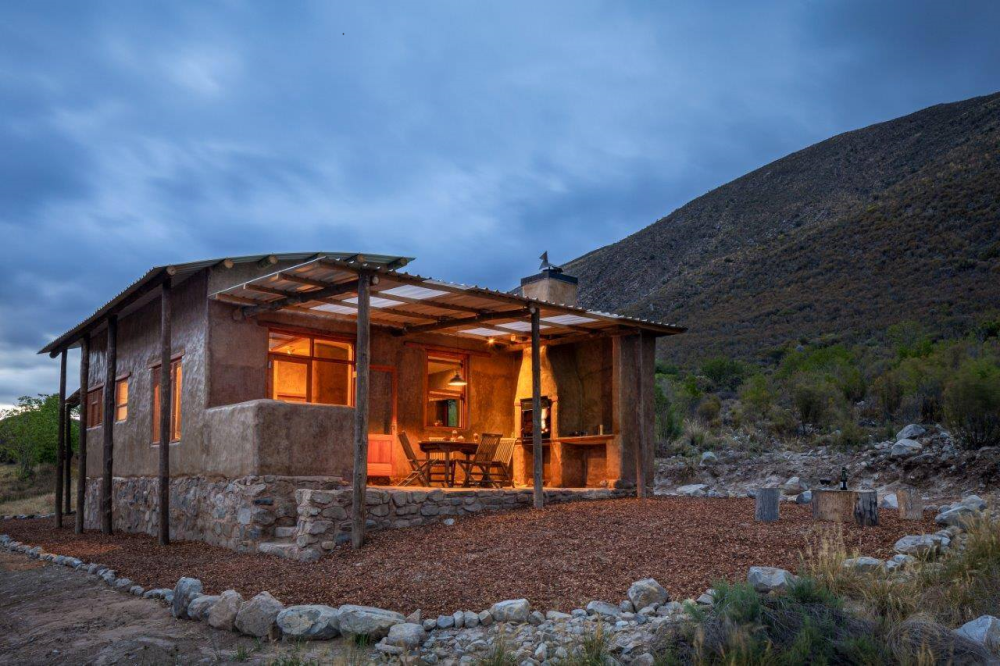

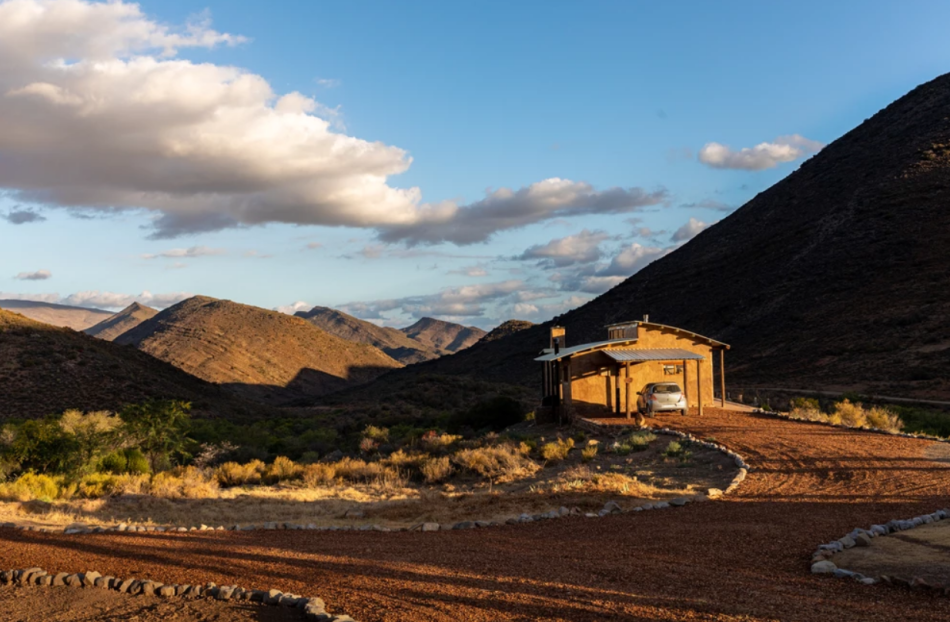

The farm also has eco-accommodation built using mudbricks with a natural stone stemwall. Special care was taken to avoid/reduce more conventional building materials with a large component of the building materials coming from the farm itself and most others have been locally sourced.

Project Initiatives

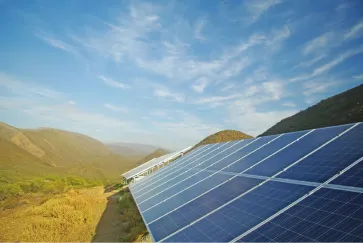

- PV – feeds consumption directly and charges batteries for night time (PV 31.15kWp)

- Hydro Electric – minimal and feeds directly into the batteries (Hydro 1kWp)

- Carbon offsetting for all LPG generator use

- 100% LED lighting

- Predominantly solar thermal hot water generation

- Buildings are all naturally ventilated

- Energy efficient appliances (Energy StarRated or A+)

- Cool roof paint

- Renewable energy from PV and Hydro is carbon neutral

- Total non-renewable energy produced: 5572.1 kWh = 35.36 GJ LPG per annum

-Total Carbon Offset: 8,478.75 kg CO2-e (figure accounts for wastage and efficiency losses)

Project Obstacles

- Remoteness and related logistics and coordination difficulties which also resulted in cost increases

- Dependence on consistent and reliable electricity for the farming operation

- Lack of water (hydro) – drought is impacting on the availability of water and the output of the micro-hydro turbine

- Finding a suitably qualified and reliable supplier/installer for a complete hybrid off-grid system in an industry with little experience in such a unique application

- High initial funding requirement for the off-grid energy system

- Difficult to quantify remaining carbon impact

Project Wins

- Eventually finding a suitable and qualified installer

- Saving electricity – and associated costs and environmental impact

- Avoiding the need to invest in installing and securing a mains grid connection from 7km afield

- Being independent of the grid

- Able to justify and source the required funding

- Contributing to a ‘worthy’ and reputable carbon offsetting project

- Doing the right thing

- Neutralising all negative effect of our energy consumption

- Net Zero certification

- Multiple Awards
